$2,135.00 – $2,525.00

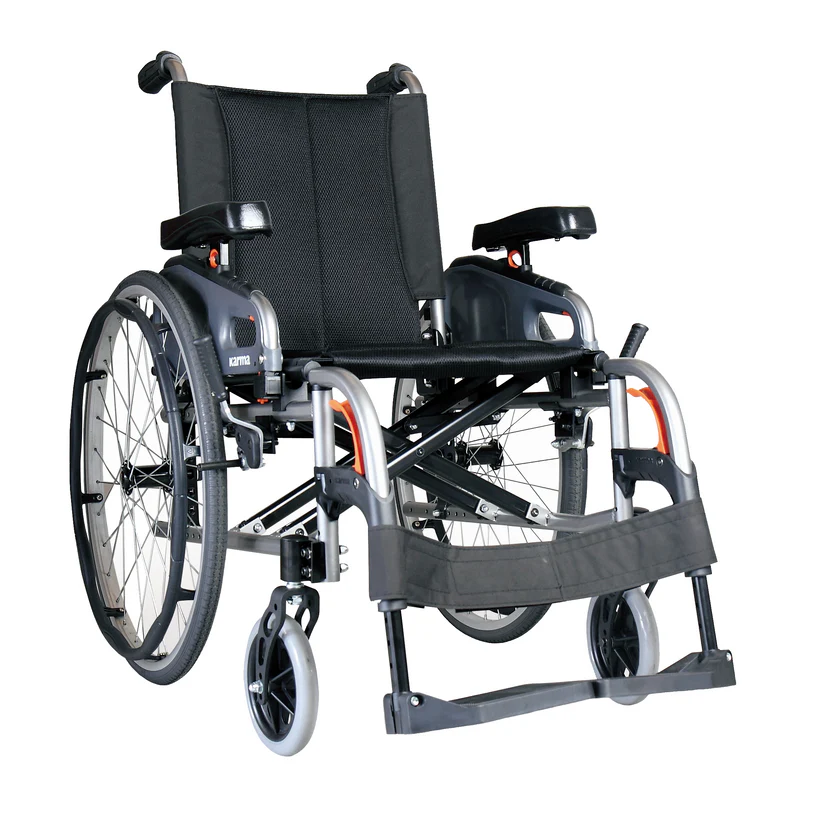

The Flexx Series is all about comfort, support, and performance. If you are an active user looking for a custom-made wheelchair, explore the many options that the Flexx Series has to offer and find the right combination to match you and your needs.

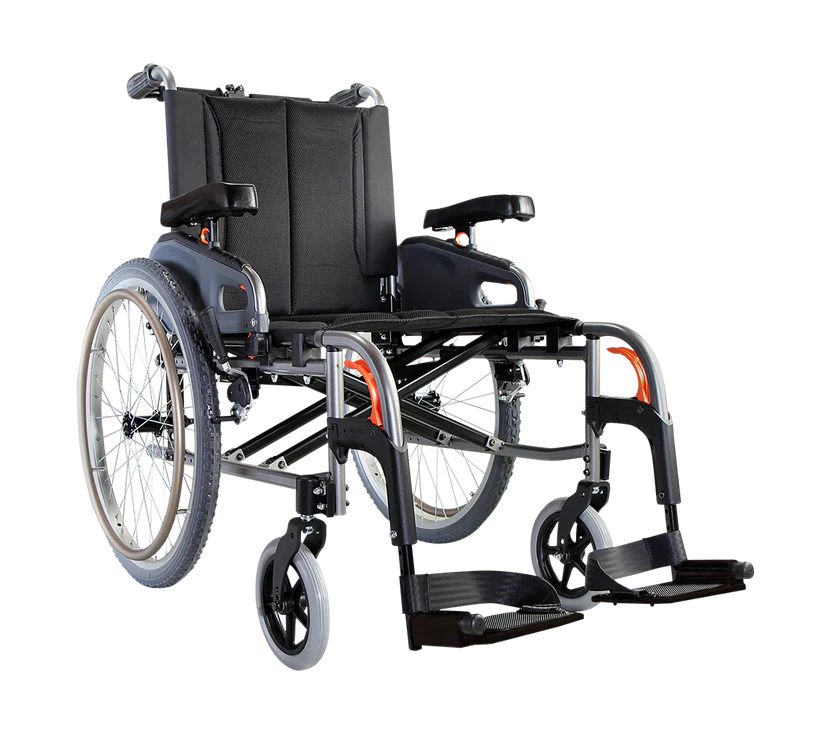

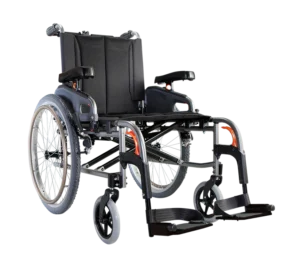

The Flexx HD is a heavy-duty version of the standard Flexx wheelchair. It can support up to 170kg and features an extra large seat options with larger width and depth. The sturdy double cross brace and adjustable centre-of-gravity provide better stability. All the Flexx accessories are compatible with the Flexx HD.
Flexx incorporates many adjustable features to improve comfort, support and mobility such as an adjustable backrest angle, backrest height, seat width, seat depth and centre-of-gravity, etc. Along with the many wheel options, this model is highly configurable to suit varying needs.
Reduces the overall size of the wheelchair during transport or storage.
The height of the armrest is adjustable. A proper armrest height is helpful to relieve loads on the neck, shoulders and arms and alleviate stress on the back.
The flip-back feature makes it easy to get on and off the wheelchair or roll closer to a table or desk.
| Size | 20 x 18, 22 x 18, 24 x 18 |
|---|
| Product Model | Flexx HD (KM-8022 HD、KM-8522 HD) | ||
| Nominal seat width (mm) | 500 | 550 | 600 |
| Caster x Rear wheel size (in) | 7 x 24Q / 8 x 24Q | ||
| Maximum user weight (kg) | 170 | ||
| Overall length with legrest (mm) | 1100 ~ 1220 | ||
| Overall width (mm) | 720 | 770 | 820 |
| Overall height (mm) | 930 ~ 960 | ||
| Folded length (mm) | 1050 ~ 1130 | ||
| Folded width (mm) | 320 ~ 330 | ||
| Folded height (mm) | 740 ~ 835 | ||
| Total mass (kg) | 18.1 ~ 19.5 | ||
| Mass of the heaviest part (kg) | 11.3 ~ 12.1 | ||
| Handrim diameter (mm) | 480 | ||
| Horizontal location of axle (mm) | 10 | ||
| Minimum turning radius (mm) | 865 ~ 1020 | ||
| Minimum turning radius without user (mm) |
810 ~ 925 | ||
| Pivot width (mm) | 1320 ~ 1430 | ||
| Static stability downhill (X°) | >16 | ||
| Static stability uphill (X°) | 11.8 | ||
| Static stability uphill with anti-tippers (X°) |
N/A | ||
| Static stability sideways (X°) | >16 | ||
| Seat plane angle (X°) | 6 | ||
| Effective seat depth (mm) | 420 ~ 520 | ||
| Nominal seat depth (mm) | 390 ~ 490 | ||
| Effective seat width (mm) | 540 | 590 | 640 |
| Seat surface height at front edge (mm) | 460 ~ 530 | ||
| Backrest angle (X°) | 12 | ||
| Seat to backrest angle (X°) | 96 | ||
| Backrest height (mm) | 430 / 510 | ||
| Headrest height above seat (mm) | N/A | ||
| Leg to seat angle (X°) | 98 | ||
| Footrest to seat distance (mm) | 370 ~ 475 | ||
| Armrest to seat distance (mm) | 215 ~ 295 | ||
| Front location of armrest structure (mm) | 355 | ||
| Product Model | Flexx HD (KM-8022 HD、KM-8522 HD) | ||
| Nominal seat width (mm) | 500 | 550 | 600 |
| Caster x Rear wheel size (in) | 7 x 14Q / 8 x 14Q | ||
| Maximum user weight (kg) | 170 | ||
| Overall length with legrest (mm) | 1080 ~ 1200 | ||
| Overall width (mm) | 680 | 730 | 780 |
| Overall height (mm) | 920 ~ 950 | ||
| Folded length (mm) | 1050 ~ 1130 | ||
| Folded width (mm) | 320 ~ 330 | ||
| Folded height (mm) | 740 ~ 835 | ||
| Total mass (kg) | 17.4 ~ 18.8 | ||
| Mass of the heaviest part (kg) | 14.1 ~ 14.9 | ||
| Handrim diameter (mm) | N/A | ||
| Horizontal location of axle (mm) | 60 | ||
| Minimum turning radius (mm) | 950 ~ 1030 | ||
| Minimum turning radius without user (mm) |
930 ~ 935 | ||
| Pivot width (mm) | 1265 ~ 1415 | ||
| Static stability downhill (X°) | >16 | ||
| Static stability uphill (X°) | 11.8 | ||
| Static stability uphill with anti-tippers (X°) |
N/A | ||
| Static stability sideways (X°) | >16 | ||
| Seat plane angle (X°) | 7 | ||
| Effective seat depth (mm) | 420 ~ 520 | ||
| Nominal seat depth (mm) | 390 ~ 490 | ||
| Effective seat width (mm) | 540 | 590 | 640 |
| Seat surface height at front edge (mm) | 460 ~ 530 | ||
| Backrest angle (X°) | 13 | ||
| Seat to backrest angle (X°) | 96 | ||
| Backrest height (mm) | 430 / 510 | ||
| Headrest height above seat (mm) | N/A | ||
| Leg to seat angle (X°) | 98 | ||
| Footrest to seat distance (mm) | 360 ~ 470 | ||
| Armrest to seat distance (mm) | 210 ~ 290 | ||
| Front location of armrest structure (mm) | 355 | ||
