Karma Flexx SP Wheelchair

$1,655.00

Secure Payment Options
SKU :

Description

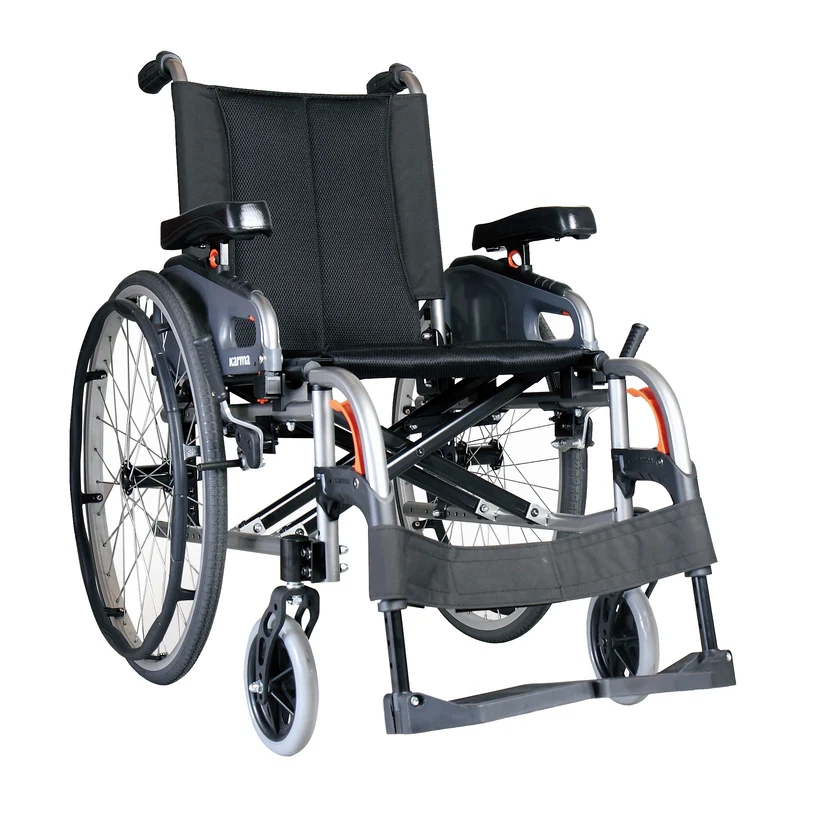

Karma Flexx SP – Wheelchair

The Flexx Series is all about comfort, support, performance and flexibility!

The Flexx’s elliptical-frame design is durable, stylish, and robust, supporting a wide array of adjustable features, such as rear-wheel axle position, seat depth, backrest angle, backrest height, and foldable backrest – to name a few.

Explore the many options that the Flexx Series has to offer and find the right combination to match your needs.

Flexx incorporates many adjustable features to improve comfort, support and mobility such as adjustable backrest angle, backrest height, seat depth, and rear wheel axle position. Along with the many wheel options, this model is highly configurable to suit varying needs.

By changing the position of the rear wheel axle, you change the handling of the wheelchair. The ideal position is based on the individual’s height, weight, strength, and comfort.

The height of the armrest is adjustable. A proper armrest height helps to relieve loads on the neck, shoulders, arms and alleviate stress on the back.

The flip-back feature makes it easy to get on and off the wheelchair or roll closer to a table or desk.

Flexx has four armrests to choose from; Standard, Ergo Armpad 2, Boat Armpad and the Hemi Armpad.

The Boat Armpad offers extra length and width and the Hemi Armpad is extra curved cut with rotation for comfort. All armrests retain the ability to flip back completely.

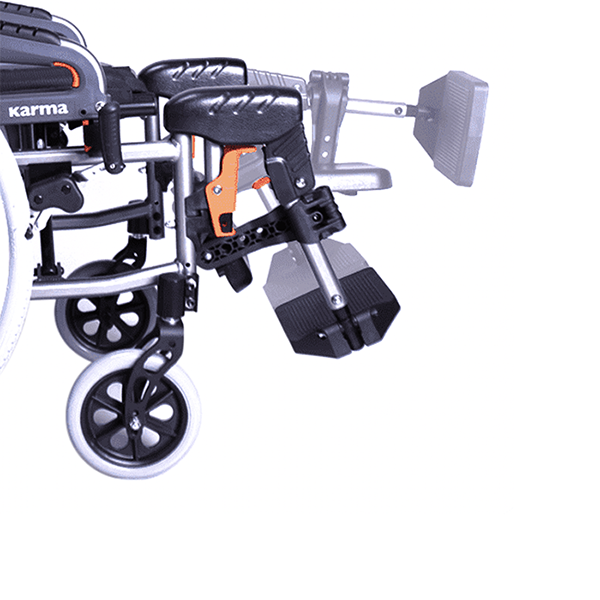

Articulating Legrest extends in length as it is elevated to provide optimal comfort and support.

Amputee footrest is height, angle, and depth adjustable for perfect support.

90-degree Legrest & Adjustable Footplate – The footplate can be set to multiple different positions and angles.

Angle Adjustable Footplate – The footplate can be angled from 70 degrees to 110 degrees.

Accessories are available to order for your Karma wheelchair.

Additional information

Size

16 x 16, 18 x 16, 18 x 18, 18 x 20

Specifications

Product Model Flexx (KM-8022、KM-8522)
Nominal seat width (mm/in)* 350 / 14 375 / 15 400 / 16 425 / 17 450 / 18 475 / 19 500 / 20
Nominal seat depth (mm/in)** 410 ~ 460 / 16 ~ 18
Front caster / Rear wheel size (in) 7 / 24 、 8 / 24
Backrest height (mm) 430 430 430 430 430 430 430
Headrest height above seat (mm) N/A N/A N/A N/A N/A N/A N/A
Armrest to seat distance (mm) 200 ~ 280
Front location of armrest structure
(mm)
355 355 355 355 355 355 355
Seat surface height at front edge (mm) 390 ~ 530
Footrest to seat distance (mm) 330 ~ 430
Effective seat width (mm) 380 405 430 455 480 505 530
Effective seat depth (mm) 570 ~ 620
Seat plane angle (X°) 5 5 5 5 5 5 5
Backrest angle (X°) 7 ~ 27
Seat to backrest angle (X°) 92 ~ 112
Leg to seat angle (X°) 99 99 99 99 99 99 99
Overall length with legrest (mm) 1030 ~ 1105
Overall width (mm) 560 585 610 635 660 685 710
Overall height (mm) 915 ~ 940
Folded length (mm) 815 ~ 865
Folded width (mm) 290 290 305 305 320 320 335
Folded height (mm) 610 ~ 740
Total mass (kg) 15.9 ~ 16.7
Mass of the heaviest part (kg) 9.8 ~ 10.9
Maximum user weight (kg) 130 130 130 130 130 130 130
Minimum turning radius (mm) 860 ~ 920
Minimum turning radius without
user (mm)
730 ~ 790
Pivot width (mm) 1240 ~ 1300
Static stability downhill (X°) 15 15 15 15 15 15 15
Static stability uphill (X°) 11 11 11 11 11 11 11
Static stability sideways (X°) 18 18 18 18 18 18 18
Handrim diameter (mm) 520 520 520 520 520 520 520
Horizontal location of axle (mm) 10 10 10 10 10 10 10
Product Model Flexx (KM-8022、KM-8522)
Nominal seat width (mm/in)* 350 / 14 375 / 15 400 / 16 425 / 17 450 / 18 475 / 19 500 / 20
Nominal seat depth (mm/in)** 410 ~ 460 / 16 ~ 18
Front caster / Rear wheel size (in) 7 / 14 、 8 / 14
Backrest height (mm) 430 430 430 430 430 430 430
Headrest height above seat (mm) N/A N/A N/A N/A N/A N/A N/A
Armrest to seat distance (mm) 200 ~ 280
Front location of armrest structure
(mm)
355 355 355 355 355 355 355
Seat surface height at front edge (mm) 390 ~ 530
Footrest to seat distance (mm) 330 ~ 430
Effective seat width (mm) 380 405 430 455 480 505 530
Effective seat depth (mm) 570 ~ 620
Seat plane angle (X°) 5 5 5 5 5 5 5
Backrest angle (X°) 7 ~ 27
Seat to backrest angle (X°) 92 ~ 112
Leg to seat angle (X°) 99 99 99 99 99 99 99
Overall length with legrest (mm) 1005 ~ 1075
Overall width (mm) 525 550 575 600 625 650 675
Overall height (mm) 910 ~ 940
Folded length (mm) 815 ~ 1040
Folded width (mm) 290 290 305 305 320 320 335
Folded height (mm) 610 ~ 740
Total mass (kg) 14.9 ~ 16.0
Mass of the heaviest part (kg) 12.5 ~ 13.4 (14F)
9.8 ~ 10.7 (14Q)
Maximum user weight (kg) 130 130 130 130 130 130 130
Minimum turning radius (mm) 920 ~ 980
Minimum turning radius without
user (mm)
790 ~ 850
Pivot width (mm) 1240 ~ 1300
Static stability downhill (X°) 15 15 15 15 15 15 15
Static stability uphill (X°) 11 11 11 11 11 11 11
Static stability sideways (X°) 18 18 18 18 18 18 18
Handrim diameter (mm) N/A N/A N/A N/A N/A N/A N/A
Horizontal location of axle (mm) 70 70 70 70 70 70 70

Video & Documents

Karma Flexx Brochure

User Manual
