$1,275.00 – $1,555.00

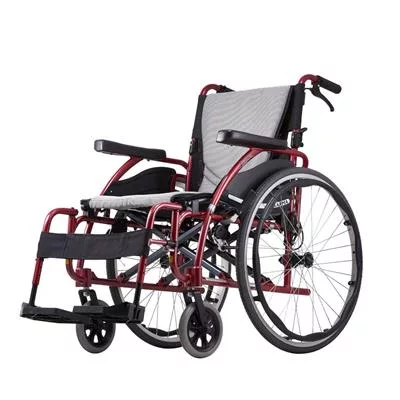

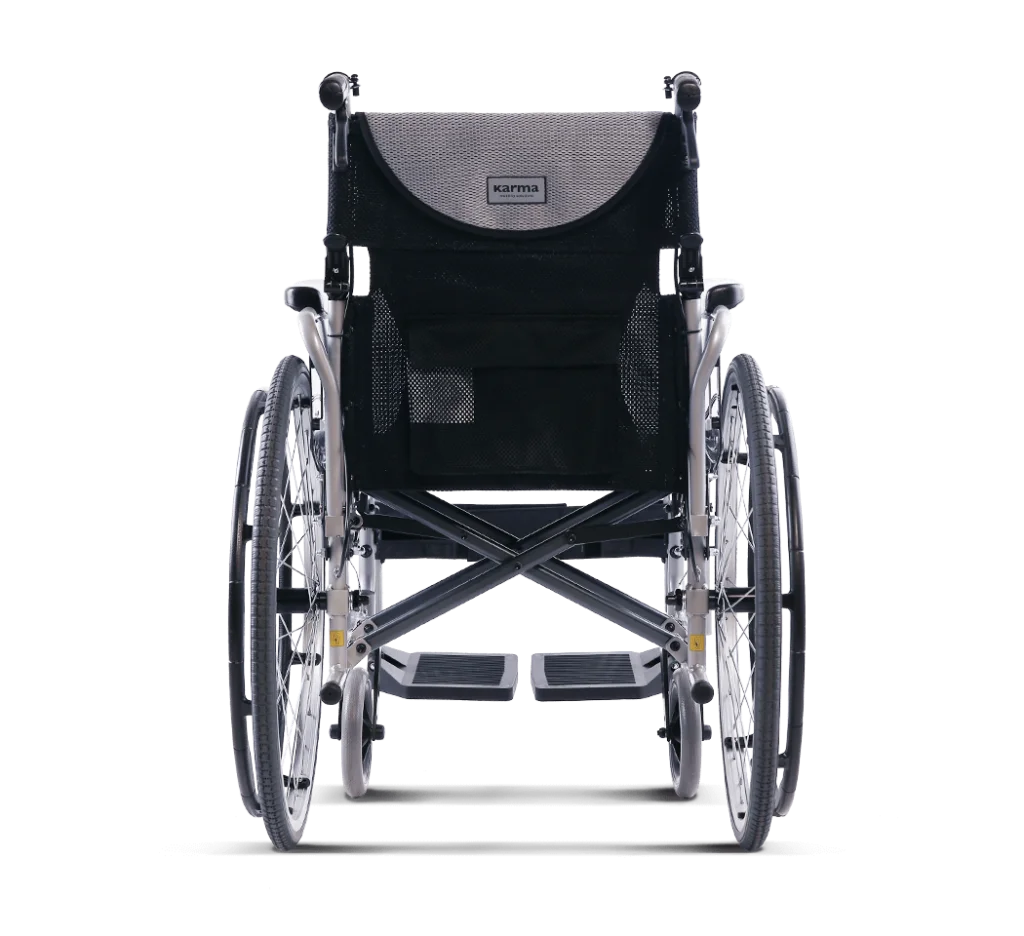

The Karma S-Ergo 125 comes equipped with the Unique S-Ergo (Smart Ergo) S shaped seat. The S-Ergo design was developed over two years, after extensive testing by Karma’s Research and Development Department. The result is a leap forward in wheelchair design.
In addition to the S-Ergo seating system, the S-Ergo 125 also has seat and backrest upholstery and pads treated with Aegis Microbe shield, to reduce stains and odour.
The streamline oval tubes not only make the wheelchair look great, but also add to the strength of the wheelchair structure, which is incredibly light. Made from aircraft aluminium frame breaks down to just 10kg.
Accessories include Anti Tip Bars | Travel Bag | Elevating Leg Rests | Stump Support | Folding Headrest | Handle Extension
| Size | 16 x 17, 18 x 17, 20 x 17 |
|---|
| Product Model | S-Ergo 125 (KM-1520.3) | |||||
| Nominal seat width (mm/in)* | 400 / 16 | 450 / 18 | 500 / 20 | 400 / 16 | 450 / 18 | 500 / 20 |
| Nominal seat depth (mm/in)** | 430 / 17 | 430 / 17 | 430 / 17 | 430 / 17 | 430 / 17 | 430 / 17 |
| Front caster / Rear wheel size (in) | 7 / 14 | 7 / 14 | 7 / 14 | 7 / 24 | 7 / 24 | 7 / 24 |
| Backrest height (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| Headrest height above seat (mm) | N/A | N/A | N/A | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 230 | 230 | 230 | 230 | 230 | 230 |
| Front location of armrest structure (mm) | 330 | 330 | 330 | 330 | 330 | 330 |
| Seat surface height at front edge (mm) | 500 | 500 | 500 | 495 | 495 | 495 |
| Footrest to seat distance (mm) | 335 ~ 415 | 335 ~ 415 | 335 ~ 415 | 335 ~ 415 | 335 ~ 415 | 335 ~ 415 |
| Effective seat width (mm) | 430 | 475 | 525 | 430 | 475 | 525 |
| Effective seat depth (mm) | 560 | 560 | 560 | 560 | 560 | 560 |
| Seat plane angle (X°) | 6 | 6 | 6 | 6 | 6 | 6 |
| Backrest angle (X°) | 12 | 12 | 12 | 12 | 12 | 12 |
| Seat to backrest angle (X°) | 96 | 96 | 96 | 96 | 96 | 96 |
| Leg to seat angle (X°) | 97 | 97 | 97 | 97 | 97 | 97 |
| Overall length with legrest (mm) | 1010 | 1010 | 1010 | 1000 | 1000 | 1000 |
| Overall width (mm) | 575 | 625 | 675 | 580 | 630 | 680 |
| Overall height (mm) | 905 | 905 | 905 | 910 | 910 | 910 |
| Folded length (mm) | 735 | 735 | 735 | 805 | 805 | 805 |
| Folded width (mm) | 310 | 310 | 310 | 320 | 320 | 320 |
| Folded height (mm) | 705 | 705 | 705 | 710 | 730 | 750 |
| Total mass (kg) | 12.9 | 13.1 | 13.3 | 14.6 | 14.8 | 15.0 |
| Mass of the heaviest part (kg) | 9.1 (14Q) 11.3 (14F) |
9.3 (14Q) 11.5 (14F) |
9.5 (14Q) 11.7 (14F) |
9.1 (24Q) 13.0 (24F) |
9.4 (24Q) 13.2 (24F) |
9.6 (24Q) 13.4 (24F) |
| Maximum user weight (kg) | 115 | 115 | 115 | 115 | 115 | 115 |
| Minimum turning radius (mm) | 840 | 850 | 860 | 830 | 840 | 850 |
| Minimum turning radius without user (mm) | 710 | 730 | 750 | 700 | 720 | 740 |
| Pivot width (mm) | 1160 | 1170 | 1180 | 1160 | 1170 | 1180 |
| Static stability downhill (X°) | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Static stability uphill (X°) | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 |
| Static stability sideways (X°) | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Handrim diameter (mm) | N/A | N/A | N/A | 520 | 520 | 530 |
| Horizontal location of axle (mm) | 10 | 10 | 10 | 0 | 0 | 0 |
| Product Model | S-Ergo 125 TL (KM-1520.3TL) | |||
| Nominal seat width (mm/in)* | 440 / 18 | 500 / 20 | 440 / 18 | 500 / 20 |
| Nominal seat depth (mm/in)** | 470 / 19 | 470 / 19 | 470 / 19 | 470 / 19 |
| Front caster / Rear wheel size (in) | 7 / 14 | 7 / 14 | 7 / 24 | 7 / 24 |
| Backrest height (mm) | 425 | 425 | 425 | 425 |
| Headrest height above seat (mm) | N/A | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 230 | 230 | 230 | 230 |
| Front location of armrest structure (mm) | 370 | 370 | 370 | 370 |
| Seat surface height at front edge (mm) | 515 | 515 | 515 | 515 |
| Footrest to seat distance (mm) | 360 ~ 435 | 360 ~ 435 | 360 ~ 435 | 360 ~ 435 |
| Effective seat width (mm) | 480 | 530 | 480 | 530 |
| Effective seat depth (mm) | 480 | 480 | 480 | 480 |
| Seat plane angle (X°) | 8 | 8 | 9 | 9 |
| Backrest angle (X°) | 14 | 14 | 13 | 13 |
| Seat to backrest angle (X°) | 96 | 96 | 94 | 94 |
| Leg to seat angle (X°) | 95 | 95 | 95 | 95 |
| Overall length with legrest (mm) | 1090 | 1090 | 1090 | 1090 |
| Overall width (mm) | 630 | 680 | 655 | 705 |
| Overall height (mm) | 975 | 975 | 975 | 975 |
| Folded length (mm) | 845 | 845 | 875 | 875 |
| Folded width (mm) | 350 | 350 | 350 | 350 |
| Folded height (mm) | 755 | 780 | 775 | 800 |
| Total mass (kg) | 14.5 | 14.8 | 15.3 | 15.5 |
| Mass of the heaviest part (kg) | 10.2 (14Q) 12.7 (14F) |
10.3 (14Q) 13.0 (14F) |
9.7 (24Q) 13.5 (24F) |
9.9 (24Q) 13.7 (24F) |
| Maximum user weight (kg) | 115 | 115 | 115 | 115 |
| Minimum turning radius (mm) | 940 | 955 | 910 | 920 |
| Minimum turning radius without user (mm) | 785 | 800 | 760 | 770 |
| Pivot width (mm) | 1260 | 1270 | 1260 | 1270 |
| Static stability downhill (X°) | 17.1 | 17.1 | 17.1 | 17.1 |
| Static stability uphill (X°) | 15.1 | 15.1 | 15.1 | 15.1 |
| Static stability sideways (X°) | 16.9 | 16.9 | 16.9 | 16.9 |
| Handrim diameter (mm) | N/A | N/A | 520 | 520 |
| Horizontal location of axle (mm) | 15 | 15 | 15 | 15 |
